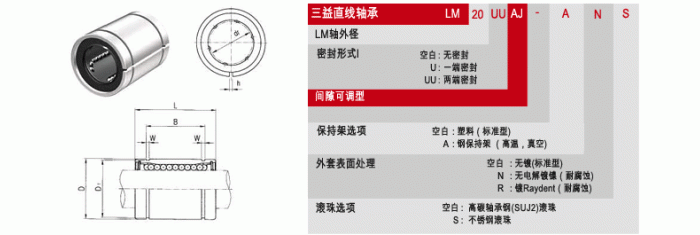

详细描述| 型号 | 内径 | 外径 | L | B | W | h |
| 基本额定载荷(N) | 滚珠 列数 | 重量 (gf) | ||||||||
| 塑料 | 钢 | dr. | 公差 | D | 公差 | 额定动载荷(C) | 额定静载荷(Co) | |||||||||||
| LM6 AJ | LM6 AJ-A | 6 |
| 12 |
| 19 | 13.5 | 1.1 | 1 | 11.5 | 200 | 260 | 4 | 8 | ||||
| LM8S AJ | LM8S AJ-A | 8 |
| 15 |
| 17 | 11.5 | 1.1 | 1 | 14.3 | 170 | 220 | 4 | 11 | ||||
| LM8 AJ | LM8 AJ-A | 8 |
| 15 |
| 24 | 17.5 | 1.1 | 1 | 14.3 | 260 | 400 | 4 | 16 | ||||
| LM10 AJ | LM10 AJ-A | 10 |
| 19 |
| 29 | 22.0 | 1.3 | 1 | 18 | 370 | 540 | 4 | 30 | ||||
| LM12 AJ | LM12 AJ-A | 12 |
| 21 |
| 30 | 23.0 | 1.3 | 1.5 | 20 | 410 | 590 | 4 | 31.5 | ||||
| LM13 AJ | LM13 AJ-A | 13 |
| 23 |
| 32 | 23.0 | 1.3 | 1.5 | 22 | 500 | 770 | 4 | 43 | ||||
| LM16 AJ | LM16 AJ-A | 16 |
| 28 |
| 37 | 26.5 | 1.6 | 1.5 | 27 | 770 | 1170 | 5 | 69 | ||||
| LM20 AJ | LM20 AJ-A | 20 |
| 32 |
| 42 | 30.5 | 1.6 | 1.5 | 30.5 | 860 | 1370 | 5 | 87 | ||||
| LM25 AJ | LM25 AJ-A | 25 |
| 40 |
| 59 | 41.0 | 1.85 | 2 | 38 | 980 | 1560 | 6 | 220 | ||||
| LM30 AJ | LM30 AJ-A | 30 |
| 45 |
| 64 | 44.5 | 1.85 | 2.5 | 43 | 1560 | 2740 | 6 | 250 | ||||
| LM35 AJ | LM35 AJ-A | 35 |
| 52 |
| 70 | 49.5 | 2.1 | 2.5 | 49 | 1660 | 3130 | 6 | 390 | ||||
| LM40 AJ | LM40 AJ-A | 40 |
| 60 |
| 80 | 60.5 | 2.1 | 3 | 57 | 2150 | 4010 | 6 | 585 | ||||
| LM50 AJ | LM50 AJ-A | 50 |
| 80 |
| 100 | 74.0 | 2.6 | 3 | 76.5 | 3820 | 7930 | 6 | 1580 | ||||
| LM60 AJ | LM60 AJ-A | 60 |
| 90 |
| 110 | 85.0 | 3.15 | 3 | 86.5 | 4700 | 9990 | 6 | 2000 | ||||
注1) 对额定动载荷 C:额定寿命50Km时 C100 ：额定寿命100Km时， C100 = C/1.26 例）LM12 C:410N, C100 = 410/1.26 = 325.40N 2) 表中重量是塑料保持架轴承的 3) 主要尺寸是㎜ 4) 表中外径是标准型的尺寸（切断之前的尺寸） |
