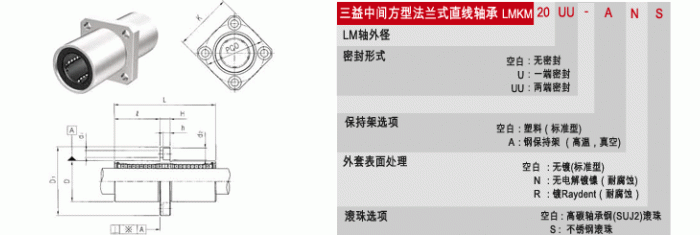

| 型号 | 内径 | D | L |
| ℓ | H | PCD | K |
|
| h | 垂角度 ※(㎛) | 基本额定载荷(N) | 滚珠 列数 | 重量 (gf) | ||||||||||
| 塑料 | 钢 | dr. | 公差 | mm | 公差 | 额定动载荷(C) | 额定静载荷(Co) | ||||||||||||||||||
| LMKM6 | LMKM6-A | 6 |
| 12 |
| 35 | 28 | 15 | 5 | 20 | 22 | 3.4 | 6.5 | 3.3 | 15 | 320 | 520 | 4 | 31 | ||||||
| LMKM8 | LMKM8-A | 8 |
| 15 |
| 45 | 32 | 20 | 5 | 24 | 25 | 3.4 | 6.5 | 3.3 | 15 | 430 | 780 | 4 | 53 | ||||||
| LMKM10 | LMKM10-A | 10 |
| 19 |
| 55 | 40 | 24.5 | 6 | 29 | 30 | 4.5 | 8 | 4.4 | 15 | 580 | 1100 | 4 | 105 | ||||||
| LMKM12 | LMKM12-A | 12 |
| 21 |
| 57 | 42 | 25.5 | 6 | 32 | 32 | 4.5 | 8 | 4.4 | 15 | 650 | 1200 | 4 | 100 | ||||||
| LMKM13 | LMKM13-A | 13 |
| 23 |
| 61 | 43 | 27.5 | 6 | 33 | 34 | 4.5 | 8 | 4.4 | 15 | 810 | 1570 | 4 | 130 | ||||||
| LMKM16 | LMKM16-A | 16 |
| 28 |
| 70 | 48 | 32 | 6 | 38 | 37 | 4.5 | 8 | 4.4 | 15 | 1230 | 2350 | 5 | 187 | ||||||
| LMKM20 | LMKM20-A | 20 |
| 32 |
| 80 | 54 | 36 | 8 | 43 | 42 | 5.5 | 9.5 | 5.4 | 20 | 1400 | 2750 | 5 | 260 | ||||||
| LMKM25 | LMKM25-A | 25 |
| 40 |
| 112 | 62 | 52 | 8 | 51 | 50 | 5.5 | 9.5 | 5.4 | 20 | 1560 | 3140 | 6 | 515 | ||||||
| LMKM30 | - | 30 |
| 45 |
| 123 | 74 | 56.5 | 10 | 60 | 58 | 6.6 | 11 | 6.5 | 20 | 2940 | 5490 | 6 | 655 | ||||||
| LMKM35 | - | 35 |
| 52 |
| 135 | 82 | 62.5 | 10 | 67 | 64 | 6.6 | 11 | 6.5 | 25 | 2650 | 6470 | 6 | 970 | ||||||
| LMKM40 | - | 40 |
| 60 |
| 154 | 96 | 70.5 | 13 | 78 | 75 | 9 | 14 | 8.6 | 25 | 3430 | 8040 | 6 | 2560 | ||||||
| LMKM50 | - | 50 |
| 80 |
| 192 | 116 | 89.5 | 13 | 98 | 92 | 9 | 14 | 8.6 | 25 | 6080 | 15900 | 6 | 3500 | ||||||
| LMKM60 | - | 60 |
| 90 |
| 211 | 134 | 96.5 | 18 | 112 | 106 | 11 | 17.5 | 10.8 | 25 | 7650 | 20000 | 6 | 4500 | ||||||
注1)对额定动载荷 C:额定寿命50Km时 C100 ：额定寿命100Km时， C100 = C/1.26 例）LM12 C:410N, C100 = 410/1.26 = 325.40N 2)表中重量是塑料保持架轴承的 3)主要尺寸是㎜ |
