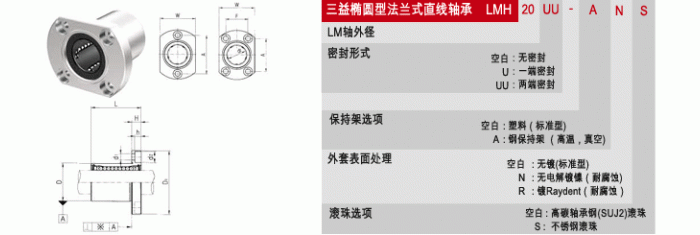

| 型号 | 内径 | D |
|
| H | W | A | F |
|
| h | 垂角度 ※(㎛) | 基本额定载荷(N) | 滚珠 列数 | 重量 (gf) | |||||||||||
| 塑料 | 钢 | dr. | 公差 | 公差 | 额定动载荷(C) | 额定静载荷(Co) | ||||||||||||||||||||
| LMH6L | LMH6L-A | 6 |
| 12 |
| 35 | 28 | 5 | 18 | 20 | - | 3.4 | 6.5 | 3.3 | 15 | 320 | 520 | 4 | 31 | |||||||
| LMH8L | LMH8L-A | 8 |
| 15 |
| 45 | 32 | 5 | 21 | 24 | - | 3.4 | 6.5 | 3.3 | 15 | 430 | 780 | 4 | 53 | |||||||
| LMH10L | LMH10L-A | 10 |
| 19 |
| 55 | 40 | 6 | 25 | 29 | - | 4.5 | 8.0 | 4.4 | 15 | 580 | 1100 | 4 | 105 | |||||||
| LMH12L | LMH12L-A | 12 |
| 21 |
| 57 | 42 | 6 | 27 | 32 | - | 4.5 | 8.0 | 4.4 | 15 | 650 | 1200 | 4 | 100 | |||||||
| LMH13L | LMH13L-A | 13 |
| 23 |
| 61 | 43 | 6 | 29 | 33 | - | 4.5 | 8.0 | 4.4 | 15 | 810 | 1570 | 4 | 130 | |||||||
| LMH16L | LMH16L-A | 16 |
| 28 |
| 70 | 48 | 6 | 34 | 31 | 22 | 4.5 | 8.0 | 4.4 | 15 | 1230 | 2350 | 5 | 187 | |||||||
| LMH20L | LMH20L-A | 20 |
| 32 |
| 80 | 54 | 8 | 38 | 36 | 24 | 5.5 | 9.5 | 5.4 | 20 | 1400 | 2750 | 5 | 260 | |||||||
| LMH25L | LMH25L-A | 25 |
| 40 |
| 112 | 62 | 8 | 46 | 40 | 32 | 5.5 | 9.5 | 5.4 | 20 | 1560 | 3140 | 6 | 515 | |||||||
| LMH30L | - | 30 |
| 45 |
| 123 | 74 | 10 | 51 | 49 | 35 | 6.6 | 11.0 | 6.5 | 20 | 2490 | 5490 | 6 | 655 | |||||||
注1)对额定动载荷 C:额定寿命50Km时 C100 ：额定寿命100Km时， C100 = C/1.26 例）LM12 C:410N, C100 = 410/1.26 = 325.40N 2)表中重量是塑料保持架轴承的 3)主要尺寸是㎜ |
